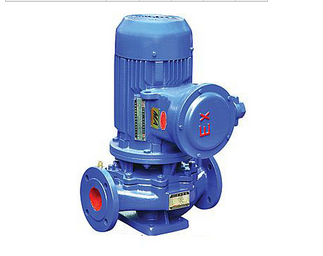

一、YG型立式管道油泵产品概述:
YG型立式管道油泵电机采用防爆电机，叶轮为铜叶轮，供输送汽油、煤油、柴油等石油产品，被输送介质温度为-20℃ ~ + 120℃。是本单位科技人员联合国内水泵专家选用国内优秀水力模型，采用IS型离心泵之性能参数，在一般管道离心泵的基础上进行巧妙组合设计而成，同时根据使用温度、立式油泵介质等不同在ISG离心泵基础上派生出适用热水、高温耐腐蚀化工泵、油泵。该系列立式管道油泵产品具有高效节能、噪音低、性能可靠等优点，符合最新国家机械部JB/T53058-93的标准要求，产品按国际ISO2858标准设计制造。
二、YG型立式管道油泵产品特点:
1、泵为立式结构，进出口口径相同，且位于同一中心线上，可象阀门一样安装于管路之中，外形紧凑美观，占地面积小，建筑投入低，如加上防护罩则可置于户外使用。
2、叶轮直接安装在电机的加长轴上，轴向尺寸短，结构紧凑，泵与电机轴承配置合理，能有效地平衡泵运转产生的径向和轴向负荷，从而保证了泵的运行平稳，振动小、噪音低。
3、轴封采用机械密封或机械密封组合，采用进口钛合金密封环、中型耐高温机械密封和采用硬质合金材质，耐磨密封，能有效地延长机械密封的使用寿命。
4、安装检修方便，无需拆动管道路系统，只要卸下泵联体座螺母即可抽出全部转子部件。
5、可根据使用要求即流量和扬程的需要采用泵的串、并联运行方式。
6、可根据管路布置的要求采用泵的竖式和横式安装。
三、YG型立式管道油泵主要用途:
1、ISG型立式管道离心泵，供输送清水及物理化学性质类似于清水的其他液体之用，适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套，使用温度T< 80℃ 。
2、IRG(GRG)型立式热水(高温)循环泵广泛适用于：能源、冶金、化工、纺织、造纸，以及宾馆饭店等锅炉高温热水增压循环输送及城市采用暖系统循环用泵，IRG型使用温度T< 120℃ ，珀GRG型使用温度T< 240℃ 。
3、IHG型立式管道化工泵，供输送不含固体颗粒，具有腐蚀性，粘度类似于水的液体，适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门，使用温度为 20℃ ~+ 120℃ 。
4、YG型立式管道油泵，供输送汽油、煤油、柴油等石油产品，被输送介质温度为 -20℃ ~+ 120℃ 。
四、YG型立式管道油泵工作条件:
1、吸入压力≤1． 0MPa，或泵系统最高工作压力≤1．6MPa，即泵吸入口压力+泵扬程≤1．6MPa，泵静压试验压力为2．5MPa，订货时请注明系统工作压力。泵系统工作压力大于1．6MPa时应在订货时另行提出，以便在制造时泵的过流部分和联接部分采用铸钢材料。
2、环境温度< 40℃ ，相对湿度<95％。
3、所输送介质中固体颗粒体积含量不超过单位体积的0．1％，粒度<0． 2mm 。
注：如使用介质为带有细小颗粒，请在订货时说明，以便厂家采用耐磨式机械密封。

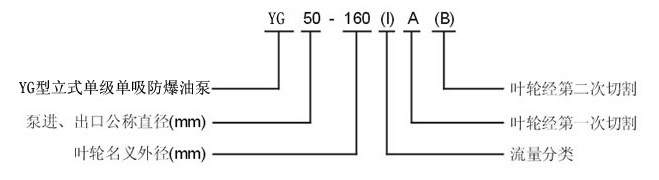

五、YG型立式管道油泵型号意义：

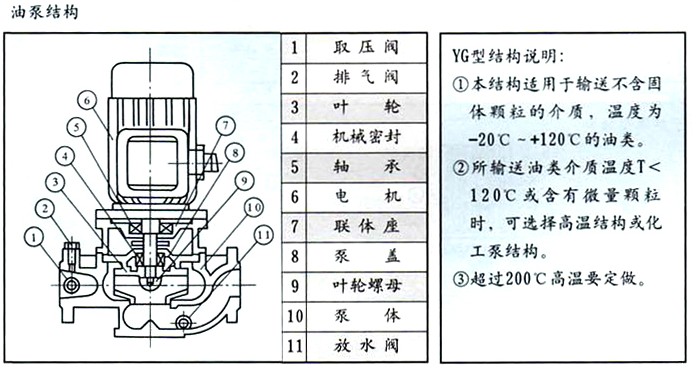

六、YG型立式管道油泵结构图
七、YG型立式管道油泵性能参数：
|
型 号
|
流量
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
电机功率
(kw)
|
汔蚀余量
(NPSH)r
|
重量
(kg)
|
|
m3/h
|
L/s
|
|
15-80
|
1.1
1.5
2.0
|
0.3
0.42
0.55
|
8.5
8
7
|
26
34
34
|
2800
|
0.18
|
2.3
|
17
|
|
20-110
|
1.8
2.5
3.3
|
0.5
0.69
0.91
|
16
15
13.5
|
25
34
35
|
2800
|
0.37
|
2.3
|
25
|
|
20-160
|
1.8
2.5
3.3
|
0.5
0.69
0.91
|
33
32
30
|
19
25
23
|
2900
|
0.75
|
2.3
|
29
|
|
25-110
|
2.8
4
5.2
|
0.78
1.11
1.44
|
16
15
13.5
|
34
42
41
|
2900
|
0.55
|
2.3
|
26
|
|
25-125
|
2.8
4
5.2
|
0.78
1.11
1.44
|
20.6
20
18
|
28
36
35
|
2900
|
0.75
|
2.3
|
28
|
|
25-125A
|
2.5
3.6
4.6
|
0.69
1.0
1.28
|
17
16
14.4
|
35
|
2900
|
0.55
|
2.3
|
27
|
|
25-160
|
2.8
4
5.2
|
0.78
1.11
1.44
|
33
32
30
|
24
32
33
|
2900
|
1.5
|
2.3
|
39
|
|
25-160A
|
2.6
3.7
4.9
|
0.12
1.03
1.36
|
29
28
26
|
31
|
2900
|
1.1
|
2.3
|
34
|
|
32-100
|
4.5
|
12.5
|
12.5
|
44
|
2900
|
0.55
|
2.0
|
27
|
|
32-100(I)
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.75
|
2.0
|
32
|
|
32-125
|
3.5
5
6.5
|
0.97
1.39
1.8
|
22
20
18
|
40
44
42
|
2900
|
0.75
|
2.3
|
28
|
|
32-125A
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
17.6
16
14.4
|
43
|
2900
|
0.55
|
2.3
|
28
|
|
32-160
|
6.5
|
5
|
32
|
44
|
2900
|
1.5
|
2.3
|
39
|
|
32-160A
|
4
|
1.1
|
25
|
34
|
2900
|
1.1
|
2.0
|
38
|
|
32-160(I)
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33.2
32
30.2
|
34
40
42
|
2900
|
2.2
|
2.0
|
4.7
|
|
32-200
|
4.5
|
12.5
|
50
|
32
|
2900
|
3
|
2.0
|
55
|
|
32-200(I)
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
50.5
50
48
|
26
33
35
|
2900
|
4
|
2.0
|
43
|
|
32-200A
|
2.8
4
5.2
|
0.78
1.11
1.44
|
44.6
44
42.7
|
34
40
42
|
2900
|
2.2
|
2.0
|
74
|
|
40-100
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.55
|
2.3
|
32
|
|
40-100A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
10.6
10
9
|
52
|
2900
|
0.37
|
2.3
|
32
|
|
40-125
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
21
20
18
|
41
46
43
|
2900
|
1.1
|
2.3
|
34
|
|
40-125A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
17.6
16
14.4
|
40
45
41
|
2900
|
0.75
|
2.3
|
33
|
|
40-160
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
33
32
30
|
35
40
40
|
2900
|
2.2
|
2.3
|
47
|
|
40-160A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
29
28
26.3
|
34
39
39
|
2900
|
1.5
|
2.3
|
43
|
|
40-160B
|
3.8
5.5
7.2
|
1.06
1.53
2.0
|
25.5
24
22.5
|
34
38
37
|
2900
|
1.1
|
2.3
|
38
|
|
40-200
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
51
50
48
|
26
33
32
|
2900
|
4.0
|
2.3
|
74
|
|
40-200A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
45
44
42
|
26
31
30
|
2900
|
3.0
|
2.3
|
62
|
|
40-200B
|
3.7
5.3
7.0
|
1.03
1.47
1.94
|
38
36
34.5
|
29
|
2900
|
2.2
|
2.3
|
52
|
|
40-250
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
82
80
74
|
24
28
28
|
2900
|
7.5
|
2.3
|
105
|
|
40-250A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
72
70
65
|
24
28
27
|
2900
|
5.5
|
2.3
|
98
|
|
40-250B
|
3.8
5.5
7.0
|
1.06
1.53
1.94
|
61.5
60
56
|
23
27
26
|
2900
|
4.0
|
2.3
|
77
|
|
40-100(I)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.2
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
2.3
|
34
|
|
40-100(I)A
|
8
11
14.5
|
2.22
3.05
4.03
|
10.6
10
9
|
60
|
2900
|
0.75
|
2.3
|
32
|
|
40-125(I)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.2
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
38
|
|
40-125(I)A
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
|
2900
|
1.1
|
2.3
|
33
|
|
40-160(I)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3.0
|
2.3
|
56
|
|
40-160(I)A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
47
|
|
40-160(I)B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
2.3
|
43
|
|
40-200(I)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
51.2
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
85
|
|
40-200(I)A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.0
44
42
|
37
45
45
|
2900
|
4.0
|
2.3
|
75
|
|
40-200(I)B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
2.3
|
63
|
|
40-250(I)
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
81.2
80
77.5
|
31
38
40
|
2900
|
11
|
2.3
|
145
|
|
40-250(I)A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.0
70
68
|
38
|
2900
|
7.5
|
2.3
|
95
|
|
40-250(I)B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
5.5
|
2.3
|
94
|
|
40-250(I)C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
|
2900
|
5.5
|
2.3
|
88
|
|
50-100
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.6
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
2.3
|
36
|
|
50-100A
|
8
11
14.5
|
2.22
3.05
4.03
|
11
10
9
|
60
|
2900
|
0.75
|
2.3
|
35
|
|
50-125
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.5
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
43
|
|
50-125A
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
|
2900
|
1.1
|
2.3
|
38
|
|
50-160
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
30
|
2900
|
3.0
|
2.3
|
59
|
|
50-160A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
51
|
|
50-160B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
|
2900
|
1.5
|
2.3
|
47
|
|
50-200
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
52
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
101
|
|
50-200A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.8
44
42
|
37
45
45
|
2900
|
4.0
|
2.3
|
80
|
|
50-200B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
|
2900
|
3
|
2.3
|
68
|
|
50-250
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
82
80
77.5
|
29
38
40
|
2900
|
11
|
2.3
|
160
|
|
50-250A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.5
70
68
|
38
|
2900
|
7.5
|
2.3
|
115
|
|
50-250B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
|
2900
|
5.5
|
2.3
|
114
|
|
50-250C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
|
2900
|
5.5
|
2.3
|
108
|
|
50-100(I)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
2.5
|
41
|
|
50-100(I)A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
36
|
|
50-125(I)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3.0
|
2.5
|
56
|
|
50-125(I)A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
13.6
|
58
66
65
|
2900
|
2.2
|
2.5
|
48
|
|
型 号
|
流量
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
电机功率
(kw)
|
汔蚀余量
(NPSH)r
|
重量
(kg)
|
|
m3/h
|
L/s
|
|
50-160(I)
|
17.5
25
32.5
|
4.68
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4.0
|
2.5
|
72
|
|
50-160(I)A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
3.0
|
2.5
|
71
|
|
50-160(I)B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
|
2900
|
2.2
|
2.5
|
59
|
|
50-200(I)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
108
|
|
50-200(I)A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
5.5
|
2.5
|
107
|
|
50-200(I)B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
4
|
2.5
|
100
|
|
50-250(I)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15.0
|
2.5
|
175
|
|
50-250(I)A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11.0
|
2.5
|
165
|
|
50-250(I)B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
7.5
|
2.5
|
165
|
|
50-315(I)
|
17.5
25
32.5
|
4.86
6.94
9.03
|
128
125
122
|
30
40
44
|
2900
|
30.0
|
2.5
|
310
|
|
50-315(I)A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
30
40
44
|
2900
|
22
|
2.5
|
245
|
|
50-315(I)B
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
2.5
|
215
|
|
50-315(I)C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15.0
|
2.5
|
195
|
|
65-100
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
|
2900
|
1.5
|
2.5
|
46
|
|
65-100A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
41
|
|
65-125
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.6
20
18
|
60
68
67
|
2900
|
3
|
2.5
|
58
|
|
65-125A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
14.4
|
58
66
65
|
2900
|
2.2
|
2.5
|
49
|
|
65-160
|
17.5
25
32.5
|
4.86
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4.0
|
2.5
|
75
|
|
65-160A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
3
|
2.5
|
75
|
|
65-160B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
|
2900
|
2.2
|
2.5
|
63
|
|
65-200
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
107
|
|
65-200A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
5.5
|
2.5
|
107
|
|
65-200B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
|
2900
|
4
|
2.5
|
100
|
|
65-250
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
2.5
|
180
|
|
65-250A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
2.5
|
170
|
|
65-250B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
7.5
|
2.5
|
170
|
|
65-315
|
17.5
25
32.5
|
4.86
6.94
9.03
|
127
125
122
|
32
40
44
|
2900
|
30
|
2.5
|
320
|
|
65-315A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
32
40
44
|
2900
|
22
|
2.5
|
255
|
|
65-315B
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
|
2900
|
18.5
|
2.5
|
225
|
|
65-315C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
|
2900
|
15
|
2.5
|
205
|
|
65-100(I)
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
3.0
|
63
|
|
65-100(I)A
|
31.3
44.7
58
|
8.7
12.4
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
3.0
|
53
|
|
65-125(I)
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
3.0
|
99
|
|
65-125(I)A
|
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
3.0
|
78
|
|
65-160(I)
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
3.0
|
103
|
|
65-160(I)A
|
32.7
46.7
61
|
9.1
13
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
5.5
|
3.0
|
103
|
|
65-160(I)B
|
30.3
43.3
56.3
|
|
26
24
21
|
69
|
2900
|
4
|
3.0
|
97
|
|
65-200(I)
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
3.0
|
176
|
|
65-200(I)A
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
3.0
|
166
|
|
65-200(I)B
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
3.0
|
114
|
|
65-250(I)
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
3.0
|
235
|
|
65-250(I)A
|
32.5
46.7
61
|
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
3.0
|
205
|
|
65-250(I)B
|
30
43.3
56
|
8.3
12
15.6
|
62
60
54
|
58
|
2900
|
15
|
3.0
|
180
|
|
65-315(I)
|
35
50
65
|
9.72
13.9
18.1
|
128
125
121
|
44
54
57
|
2900
|
37
|
3.0
|
350
|
|
65-315(I)A
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
106.4
|
43
54
57
|
2900
|
30
|
3.0
|
335
|
|
65-315(I)B
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
3.0
|
335
|
|
65-315(I)C
|
29
41
53.6
|
8.1
11.4
14.9
|
87
85
83
|
51
|
2900
|
22
|
3.0
|
270
|
|
80-100
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
3.0
|
63
|
|
80-100A
|
31.3
44.7
58
|
8.7
12.5
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
3.0
|
54
|
|
80-125
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
3.0
|
99
|
|
80-125A
|
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
3.0
|
79
|
|
型 号
|
流量
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
电机功率
(kw)
|
汔蚀余量
(NPSH)r
|
重量
(kg)
|
|
m3/h
|
L/s
|
|
80-160
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
3.0
|
105
|
|
80-160A
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
5.5
|
3.0
|
105
|
|
80-160B
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
|
2900
|
4
|
3.0
|
98
|
|
80-200
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
3.0
|
175
|
|
80-200A
|
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
3.0
|
165
|
|
80-200B
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
|
2900
|
7.5
|
3.0
|
115
|
|
80-250
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
3.0
|
240
|
|
80-250A
|
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
3.0
|
210
|
|
80-250B
|
30
43.3
56
|
8.3
12.0
15.6
|
62
60
54
|
58
|
2900
|
15
|
3.0
|
185
|
|
80-315
|
35
50
65
|
9.72
13.9
18.1
|
128
125
122
|
43
54
57
|
2900
|
37
|
3.0
|
355
|
|
80-315A
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
107.4
|
43
54
57
|
2900
|
30
|
3.0
|
340
|
|
80-315B
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
|
2900
|
30
|
3.0
|
340
|
|
80-315C
|
29
41
53.6
|
8.1
11.4
14.9
|
98
85
83
|
51
|
2900
|
22
|
3.0
|
275
|
|
80-350
|
35
50
65
|
9.72
13.9
18.1
|
146
150
142
|
55
66
67
|
2900
|
55
|
3.0
|
570
|
|
80-350A
|
31
44.5
58
|
8.6
12.4
16.1
|
138.4
142
134.8
|
65
|
2900
|
45
|
3.0
|
470
|
|
80-350B
|
29
41
53.6
|
8.1
11.4
14.9
|
131.4
135
127.8
|
63
|
2900
|
37
|
3.0
|
440
|
|
80-100(I)
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
4.5
|
108
|
|
80-100(I)A
|
62.6
89
116
|
17.4
24.7
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
4.5
|
87
|
|
80-125(I)
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
4.5
|
163
|
|
80-125(I)A
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
65
|
2900
|
7.5
|
4.5
|
113
|
|
80-160(I)
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
4.5
|
184
|
|
80-160(I)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
4.5
|
174
|
|
80-160(I)B
|
60.6
86.6
112.5
|
16.8
24.1
31.3
|
72
24
18
|
72
|
2900
|
7.5
|
4.5
|
174
|
|
80-200(I)
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
4.0
|
251
|
|
80-200(I)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
67
73
72
|
2900
|
18.5
|
4.0
|
220
|
|
80-200(I)B
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
4.0
|
198
|
|
80-250(I)
|
70
100
130
|
19.4
27.8
36.1
|
87
80
68
|
62
69
68
|
2900
|
37
|
4.0
|
330
|
|
80-250(I)A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
4.0
|
315
|
|
80-250(I)B
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
22
|
4.0
|
315
|
|
80-315(I)
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
4.0
|
675
|
|
80-315(I)A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
55
66
67
|
2900
|
55
|
4.0
|
535
|
|
80-315(I)B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
4.0
|
420
|
|
80-315(I)C
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
4.0
|
366
|
|
100-100
|
70
100
130
|
19.4
27.8
36.1
|
13.6
12.5
11
|
66
76
75
|
2900
|
5.5
|
4.5
|
113
|
|
100-100A
|
62.6
89
116
|
17.4
47
32.2
|
11
10
8.8
|
64
74
74
|
2900
|
4
|
4.5
|
91
|
|
100-125
|
70
100
130
|
19.4
27.8
36.1
|
23.5
20
14
|
70
76
65
|
2900
|
11
|
4.5
|
169
|
|
100-125A
|
62.6
89
116
|
17.4
24.7
32.2
|
19
16
11
|
68
74
63
|
2900
|
7.5
|
4.5
|
118
|
|
100-160
|
70
100
130
|
19.4
27.8
36.1
|
36.5
32
24
|
70
76
65
|
2900
|
15
|
4.5
|
191
|
|
100-160A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
32
28
21
|
68
74
67
|
2900
|
11
|
4.5
|
181
|
|
100-160B
|
60.6
86.6
112.5
|
16.8
24.1
31.3
|
27
24
18
|
72
|
2900
|
7.5
|
4.5
|
181
|
|
100-200
|
70
100
130
|
19.4
27.8
36.1
|
54
50
42
|
65
74
73
|
2900
|
22
|
4.0
|
245
|
|
100-200A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
47.5
44
37
|
64
73
72
|
2900
|
18.5
|
4.0
|
215
|
|
100-200B
|
61
87
113
|
16.9
24.2
31.4
|
41
38
32
|
71
|
2900
|
15
|
4.0
|
193
|
|
100-250
|
70
100
130
|
19.4
27.8
36.1
|
87
80
68
|
62
69
68
|
2900
|
37
|
4.0
|
345
|
|
100-250A
|
65.4
93.5
121.6
|
18.2
26.0
33.8
|
76
70
59.5
|
61
68
67
|
2900
|
30
|
4.0
|
330
|
|
100-250B
|
61
87
113
|
16.9
24.2
31.4
|
65
60
51
|
66
|
2900
|
33
|
4.0
|
330
|
|
100-315
|
70
100
130
|
19.4
27.8
36.1
|
132
125
114
|
55
66
67
|
2900
|
75
|
4.0
|
689
|
|
100-315A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
65
66
67
|
2900
|
55
|
4.0
|
549
|
|
100-315B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
|
2900
|
45
|
4.0
|
439
|
|
100-315C
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
|
2900
|
37
|
4.0
|
385
|
|
100-100(I)
|
96
160
192
|
26.7
44.4
53.3
|
14
12.5
10
|
64
73
70
|
2900
|
11
|
4.5
|
115
|
|
100-125(I)
|
96
160
192
|
26.7
44.4
53.3
|
24
20
14
|
62
74
69
|
2900
|
15
|
4.5
|
168
|
|
100-125(I)A
|
84
140
168
|
23.3
39
46.7
|
20
17
12
|
64
72
68
|
2900
|
11
|
4.5
|
168
|
|
100-160(I)
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
69
79
75
|
2900
|
22
|
5.6
|
210
|
|
100-160(I)A
|
84
140
168
|
23.3
39
46.7
|
32
28
23.5
|
66
76
72
|
2900
|
18.5
|
5.0
|
210
|
|
100-200(I)
|
96
160
192
|
26.7
44.4
53.3
|
53
50
45
|
69
79
78
|
2900
|
37
|
5.2
|
402
|
|
100-200(I)A
|
84
140
168
|
23.3
39
46.7
|
48
45
40
|
64
74
73
|
2900
|
30
|
4.5
|
395
|
|
100-200(I)B
|
60
100
120
|
|
|
72
|
2900
|
22
|
4.5
|
360
|
|
100-250(I)
|
96
160
192
|
26.7
44.4
53.3
|
83
80
72
|
65
77
74
|
2900
|
55
|
4.8
|
560
|
|
100-250(I)A
|
84
140
168
|
23.3
39
46.7
|
75
72
65
|
60
72
69
|
2900
|
45
|
4.5
|
420
|
|
100-250(I)B
|
60
100
120
|
16.7
27.8
33.3
|
68
65
58
|
70
|
2900
|
37
|
4.5
|
400
|
|
100-350
|
60
100
120
|
16.7
27.8
33.3
|
153.6
150
142
|
72
57
74
|
2900
|
90
|
4.0
|
950
|
|
100-350A
|
61
87
113
|
16.9
24.2
31.4
|
145.6
142
134
|
75
|
2900
|
75
|
4.0
|
830
|
|
型 号
|
流量
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
电机功率
(kw)
|
汔蚀余量
(NPSH)r
|
重量
(kg)
|
|
m3/h
|
L/s
|
|
100-350B
|
58
82
107
|
16.1
22.8
29.7
|
138.6
135
127
|
75
|
2900
|
55
|
4.0
|
600
|
|
125-100
|
96
160
192
|
26.7
44.4
53.3
|
13
12.5
12
|
82
|
2900
|
11
|
4.0
|
180
|
|
125-100A
|
86
143
172
|
23.9
39.7
47.8
|
10.4
10
9.6
|
77
|
2900
|
7.5
|
4.0
|
125
|
|
125-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
17
|
80
|
2900
|
15
|
4.0
|
220
|
|
125-125A
|
86
143
172
|
23.9
39.7
47.8
|
18
16
13.6
|
77
|
2900
|
11
|
4.0
|
210
|
|
125-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
28
|
78
|
2900
|
22
|
4.0
|
265
|
|
125-160A
|
90
150
180
|
25
41.7
50
|
31.5
28
24.5
|
76
|
2900
|
18.5
|
4.0
|
230
|
|
125-160B
|
83
138
166
|
21.7
38.3
46.1
|
27
24
21
|
73
|
2900
|
15
|
4.0
|
215
|
|
125-200
|
96
160
192
|
26.7
44.4
53.3
|
55
50
46
|
77
|
2900
|
37
|
5.5
|
395
|
|
125-200A
|
90
150
180
|
25
41.7
50
|
48.4
44
40.5
|
76
|
2900
|
30
|
5.5
|
380
|
|
125-200B
|
83
138
166
|
21.7
38.3
46.1
|
41.3
37.5
34.5
|
75
|
2900
|
22
|
5.5
|
320
|
|
125-250
|
96
160
192
|
26.7
44.4
53.3
|
87
80
73
|
75
|
2900
|
55
|
5.0
|
580
|
|
125-250A
|
90
150
180
|
25
41.7
50
|
76
70
84
|
74
|
2900
|
45
|
5.5
|
490
|
|
125-250B
|
83
138
166
|
21.7
38.3
46.1
|
65
60
55
|
73
|
2900
|
37
|
5.5
|
430
|
|
125-315
|
96
160
192
|
26.7
44.7
53.3
|
133
125
119
|
70
|
2900
|
90
|
5.0
|
790
|
|
125-315A
|
90
150
180
|
25
41.7
50
|
117
110
104.6
|
70
|
2900
|
75
|
5.0
|
710
|
|
125-315B
|
86
143
172
|
23.9
39.7
47.8
|
106.4
100
95.2
|
69
|
2900
|
75
|
5.0
|
705
|
|
125-315C
|
80.5
134
161
|
22.4
37.2
44.7
|
96
88
86
|
67
|
2900
|
55
|
5.0
|
585
|
|
150-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
24
17
|
66
76
76
|
2900
|
11
|
4.0
|
210
|
|
150-125A
|
90
150
180
|
25
41.7
50
|
18
16
13.6
|
77
|
2900
|
7.5
|
4.0
|
130
|
|
150-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
75
|
2900
|
22
|
4.0
|
270
|
|
150-160A
|
90
150
180
|
25
41.7
50
|
32
28
23.5
|
76
|
2900
|
18.5
|
4.0
|
230
|
|
150-160B
|
84
140
168
|
23.3
39
46.7
|
27
24
21
|
73
|
2900
|
15
|
4.0
|
220
|
|
150-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
265
|
|
150-200A
|
125
176
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
244
|
|
150-200B
|
84
140
168
|
23.3
39
46.7
|
41
38
34
|
75
|
2900
|
22
|
4.0
|
275
|
|
150-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
300
|
|
150-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
262
|
|
150-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
|
1450
|
11
|
3.0
|
241
|
|
150-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
73
|
1450
|
30
|
2.5
|
410
|
|
150-315A
|
131
187
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
335
|
|
150-315B
|
121
173
225
|
33.5
48.1
62.5
|
25
24
21
|
76
|
1450
|
18.5
|
3.5
|
315
|
|
150-350
|
96
160
192
|
26.7
44.4
53.3
|
153.6
150
142.8
|
80
|
2900
|
110
|
5.5
|
970
|
|
150-350A
|
90
150
180
|
25
41.7
50
|
145.6
142
134.8
|
70
|
2900
|
90
|
5.2
|
790
|
|
150-350B
|
84
140
168
|
23.3
39
46.7
|
|
65
76
74
|
2900
|
75
|
5.5
|
705
|
|
150-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
490
|
|
150-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
454
|
|
150-400B
|
122
174
226.5
|
33.9
48.3
62.9
|
40
38
33
|
73
|
1450
|
30
|
3.5
|
435
|
|
150-400C
|
112
160
208
|
31.1
44.4
57.8
|
34
32
28
|
71
|
1450
|
22
|
3.5
|
365
|
|
150-250(I)
|
120
200
240
|
33.3
55.6
66.7
|
87
80
72
|
65
76
74
|
2900
|
75
|
4.5
|
702
|
|
150-250(I)A
|
112
187
224
|
31.1
51.9
62.2
|
76
70
63
|
64
75
73
|
2900
|
55
|
4.5
|
561
|
|
150-250(I)B
|
104
173
208
|
28.9
48.1
57.8
|
65
60
54
|
63
74
72
|
2900
|
45
|
4.5
|
460
|
|
150-315(I)
|
120
200
240
|
33.3
55.6
66.7
|
133
125
120
|
58
73
75
|
2900
|
110
|
4.5
|
980
|
|
150-315(I)A
|
112
187
224
|
31.1
51.9
62.2
|
116
110
105
|
57
72
74
|
2900
|
90
|
4.5
|
800
|
|
150-315(I)B
|
104
173
208
|
28.9
48.1
57.8
|
100
95
91
|
55
70
72
|
2900
|
75
|
4.5
|
724
|
|
200-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
265
|
|
200-200A
|
125
179
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
244
|
|
200-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
305
|
|
200-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
267
|
|
200-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
|
1450
|
11
|
3.0
|
246
|
|
200-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
78
|
1450
|
30
|
3.5
|
417
|
|
200-315A
|
131
189
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
342
|
|
200-315B
|
121
173
225
|
33.6
48.1
62.5
|
25
24
21
|
76
|
1450
|
18.5
|
3.5
|
322
|
|
200-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
498
|
|
200-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
462
|
|
200-400B
|
122
174
226.5
|
33.9
48.5
62.9
|
40
38
33
|
73
|
1450
|
30
|
3.5
|
443
|
|
200-400C
|
112
160
208
|
31.3
44.4
57.8
|
34
32
28
|
71
|
1450
|
22
|
3.5
|
373
|
|
200-200(I)
|
280
400
520
|
77.8
111.1
144
|
13.4
12.5
10.5
|
70
80
79
|
1450
|
22
|
4.0
|
382
|
|
200-200(I)A
|
250
358
465
|
69.4
90.4
129.2
|
10.7
10
8.5
|
68
78
77
|
1450
|
18.5
|
4.0
|
346
|
|
200-250(I)
|
280
400
520
|
77.8
111.1
144
|
22.2
20
14
|
75
80
72
|
1450
|
30
|
4.0
|
475
|
|
200-250(I)A
|
250
358
465
|
69.4
99.4
129.2
|
18
14
11.2
|
73
78
70
|
1450
|
20
|
4.0
|
405
|
|
200-250(I)B
|
226
322
419
|
62.8
89.4
116.4
|
14.4
13
7.3
|
70
75
67
|
1450
|
18.5
|
4.0
|
387
|
|
200-315(I)
|
280
400
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
4.0
|
675
|
|
型 号
|
流量
|
扬程
(m)
|
效率
(%)
|
转速
(r/min)
|
电机功率
(kw)
|
汔蚀余量
(NPSH)r
|
重量
(kg)
|
|
m3/h
|
L/s
|
|
200-315(I)A
|
262
374
486
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
4.0
|
560
|
|
200-315(I)B
|
242
346
450
|
67.2
96.1
125
|
27
24
19.5
|
78
|
1450
|
37
|
4.0
|
535
|
|
200-400(I)
|
280
400
520
|
77.8
111.4
144
|
54.5
50
39
|
75
81
77
|
1450
|
75
|
4.0
|
830
|
|
200-400(I)A
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
|
1450
|
75
|
4.0
|
830
|
|
200-400(I)B
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
|
1450
|
55
|
5.0
|
685
|
|
200-400(I)C
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
|
1450
|
45
|
5.0
|
580
|
|
250-250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
5.0
|
620
|
|
250-250A
|
300
500
600
|
18.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
5.0
|
550
|
|
250-235
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1480
|
22
|
4.5
|
410
|
|
250-300
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
|
1480
|
37
|
4.5
|
550
|
|
250-315
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
5.5
|
890
|
|
250-315A
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
5.5
|
690
|
|
250-315B
|
260
450
520
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
5.5
|
620
|
|
250-400
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
|
1480
|
90
|
4.5
|
1530
|
|
300-235
|
540
720
900
|
150
200
250
|
20.5
18
15.0
|
77
81
74
|
1450
|
55
|
5.0
|
1075
|
|
300-235A
|
450
600
720
|
|
17.2
15
12.5
|
74
79
77
|
1450
|
45
|
5.0
|
970
|
|
300-235B
|
420
540
650
|
116.7
150
181
|
14.3
12.8
10.5
|
73
78
70
|
1450
|
37
|
5.0
|
925
|
|
300-250
|
540
720
900
|
150
200
250
|
22.5
20
17
|
80
83
84
|
1450
|
55
|
6.0
|
1085
|
|
300-250A
|
450
600
720
|
136
166
200
|
19.5
17
14
|
81
|
1450
|
45
|
6.0
|
980
|
|
300-300
|
540
720
900
|
150
200
250
|
32
28
23
|
82
|
1480
|
75
|
5.0
|
1230
|
|
300-300A
|
450
600
720
|
125
166
200
|
27.5
24
20
|
80
|
1480
|
75
|
5.0
|
1095
|
|
300-300B
|
|
116.7
150
181
|
24
21
17
|
78
|
1480
|
55
|
5.0
|
980
|
|
300-315
|
540
720
900
|
150
200
250
|
35
32
26
|
84
|
1480
|
90
|
4.5
|
1350
|
|
300-315A
|
460
650
800
|
127.8
180
222
|
31.5
28
23.5
|
80
|
1480
|
75
|
4.5
|
1240
|
|
300-315B
|
420
580
700
|
116.7
161
194
|
27
24
20.0
|
78
|
1480
|
55
|
4.5
|
1100
|
|
300-380
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
|
970
|
132.0
|
5.0
|
1900
|
|
300-380A
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
|
970
|
110.0
|
5.0
|
1700
|
|
300-380B
|
400
614
764
|
113.6
170.6
213.1
|
35
32
35
|
78
|
970
|
90.0
|
5.0
|
1530
|
|
300-390
|
540
720
900
|
150
200
250
|
20.5
18
15.5
|
78
81
76
|
980
|
55
|
5.0
|
1300
|
|
300-390A
|
450
600
720
|
126
167
200
|
17.2
15
12.8
|
77
79
75
|
980
|
45
|
5.0
|
1220
|
|
300-390B
|
400
540
650
|
111
150
180
|
14
12.5
11.5
|
74
77
76
|
980
|
37
|
5.0
|
1100
|
|
300-400
|
450
600
720
|
125
166
200
|
55
50
42.5
|
78
|
1480
|
110
|
5.0
|
1500
|
|
300-480
|
540
720
900
|
150
200
250
|
31
28
24
|
79
81
80
|
980
|
75
|
5.0
|
1500
|
|
300-480A
|
450
600
720
|
126
166
200
|
27.4
24
20.0
|
78
80
79
|
980
|
75
|
5.0
|
1280
|
|
300-480B
|
400
540
650
|
111
150
180
|
24
21
17
|
79
|
980
|
55
|
5.0
|
1180
|
|
350-235
|
600
800
960
|
167
222
267
|
14
12.5
10.5
|
80
83
82
|
1480
|
37
|
4.5
|
1050
|
|
350-300
|
600
800
960
|
167
222
267
|
22.5
20
17.5
|
79
82
71
|
1480
|
55
|
4.5
|
1230
|
|
350-315
|
|
167
222
267
|
35.5
32
28.5
|
84
|
1480
|
90
|
4.5
|
1650
|
|
350-400
|
600
800
960
|
167
222
267
|
55
50
45.5
|
83
|
1480
|
160
|
4.5
|
1950
|
|
400-300
|
920
1080
1300
|
228
300
361
|
23
20
16
|
78
|
1480
|
90
|
6.0
|
1570
|
|
400-315
|
820
1080
1300
|
205
300
344
|
36.5
32
27
|
76
|
1480
|
132
|
6.0
|
1880
|
|
500-300
|
1000
1200
1450
|
277.8
333
403
|
23
20
16.0
|
80
|
1480
|
110
|
6.0
|
1800
|
|
500-315
|
1000
1200
1450
|
278
333
403
|
34.5
32
27
|
78
|
1480
|
160
|
6.0
|
2070
|
